Controlled Compressor Architecture

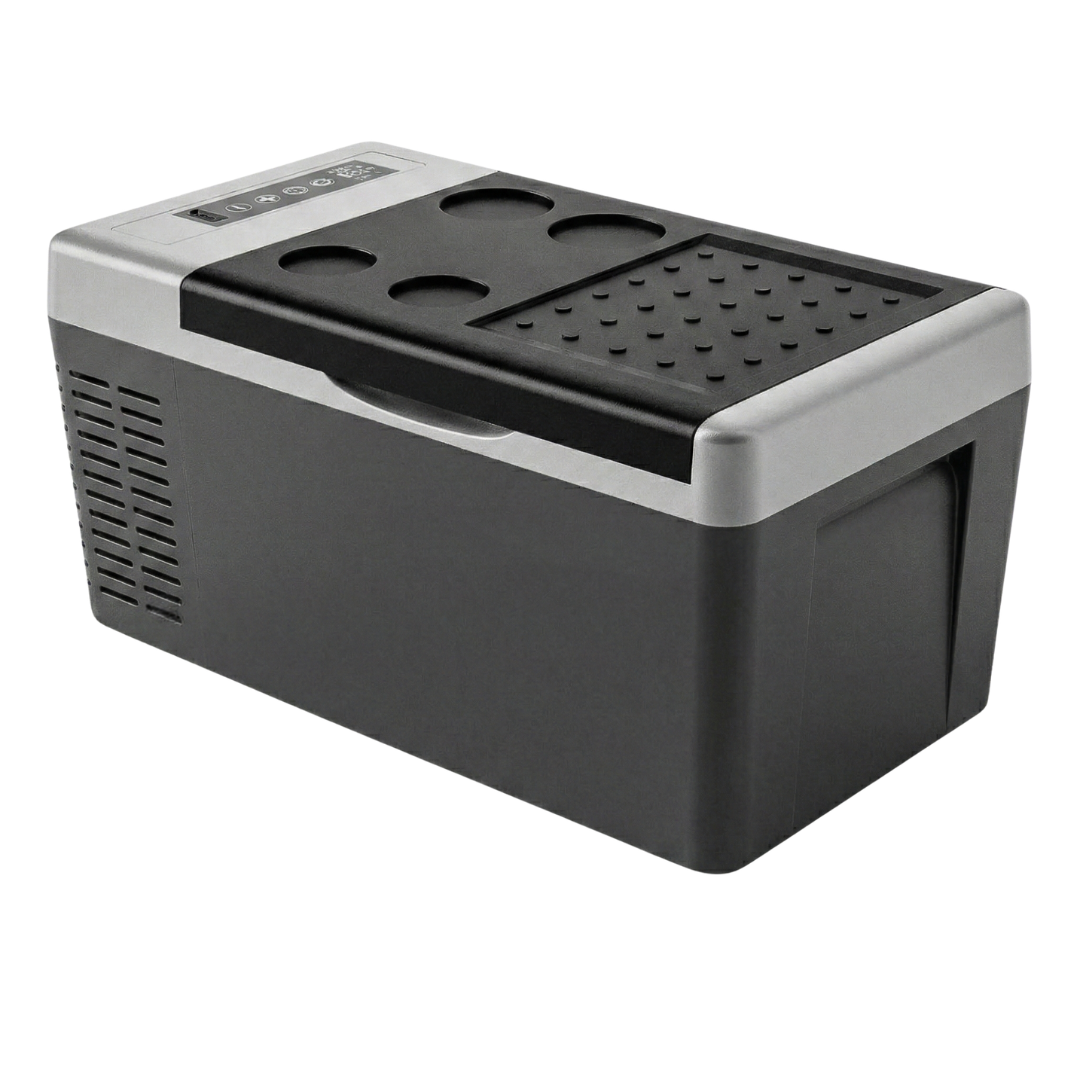

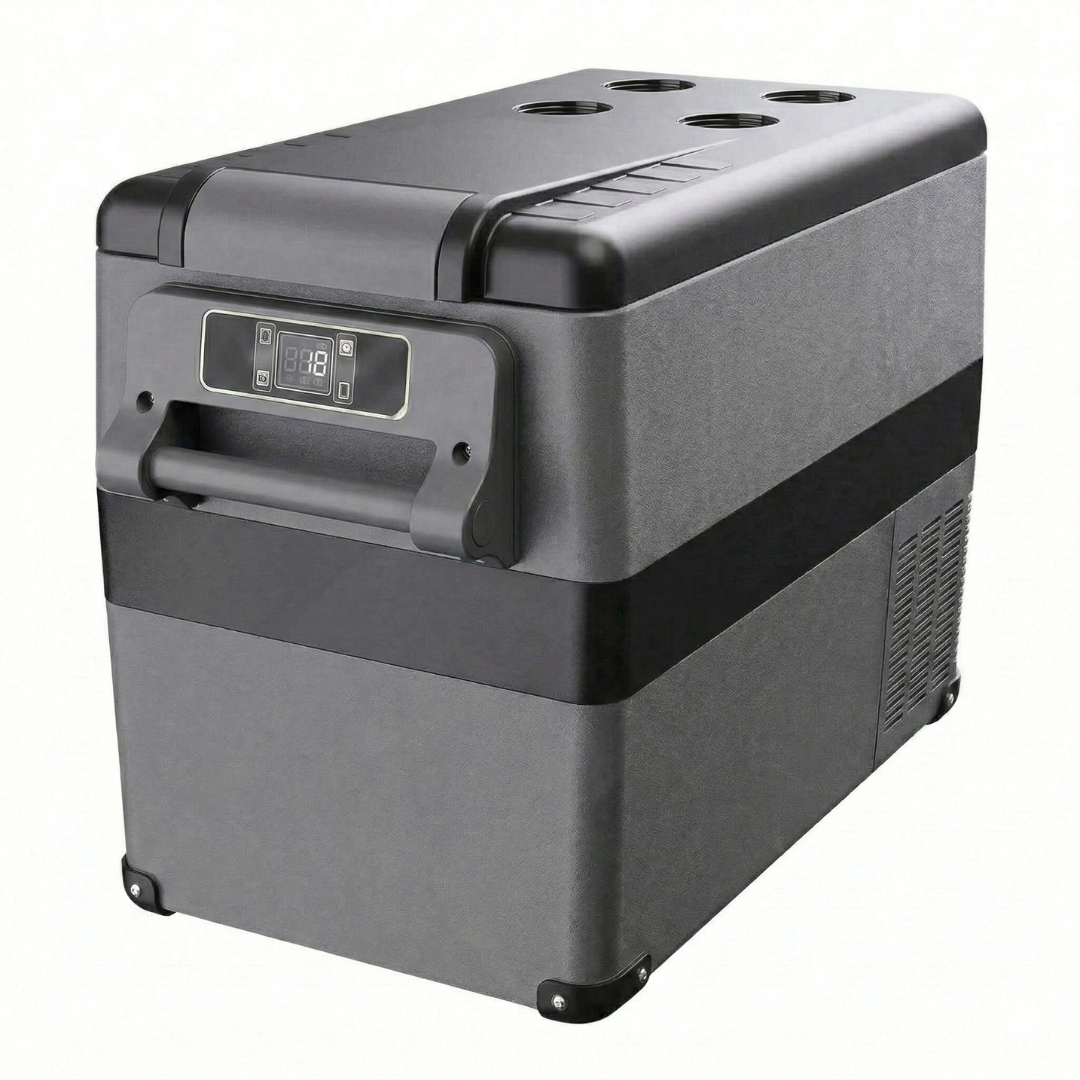

This 12V chest-style refrigerator uses an inverter compressor to regulate internal temperature from -4°F to 68°F. It supports 12/24V DC vehicle systems and 100–240V AC household input through included adapters. The frost-free system operates without manual defrosting, and average consumption is approximately 45W under standard conditions. Capacities range from 19QT to 47QT, with a removable internal basket and single top-opening lid for organized storage.

Electrical Operation in Vehicle Use

The unit connects directly to a standard 12V or 24V vehicle outlet and automatically cycles the compressor based on the selected setpoint. A three-level battery input setting allows low-voltage cutoff adjustment for different vehicle electrical systems. Temperature control is managed through the LCD panel or Bluetooth app interface. ECO and MAX modes regulate compressor cycling frequency and electrical consumption depending on usage requirements.

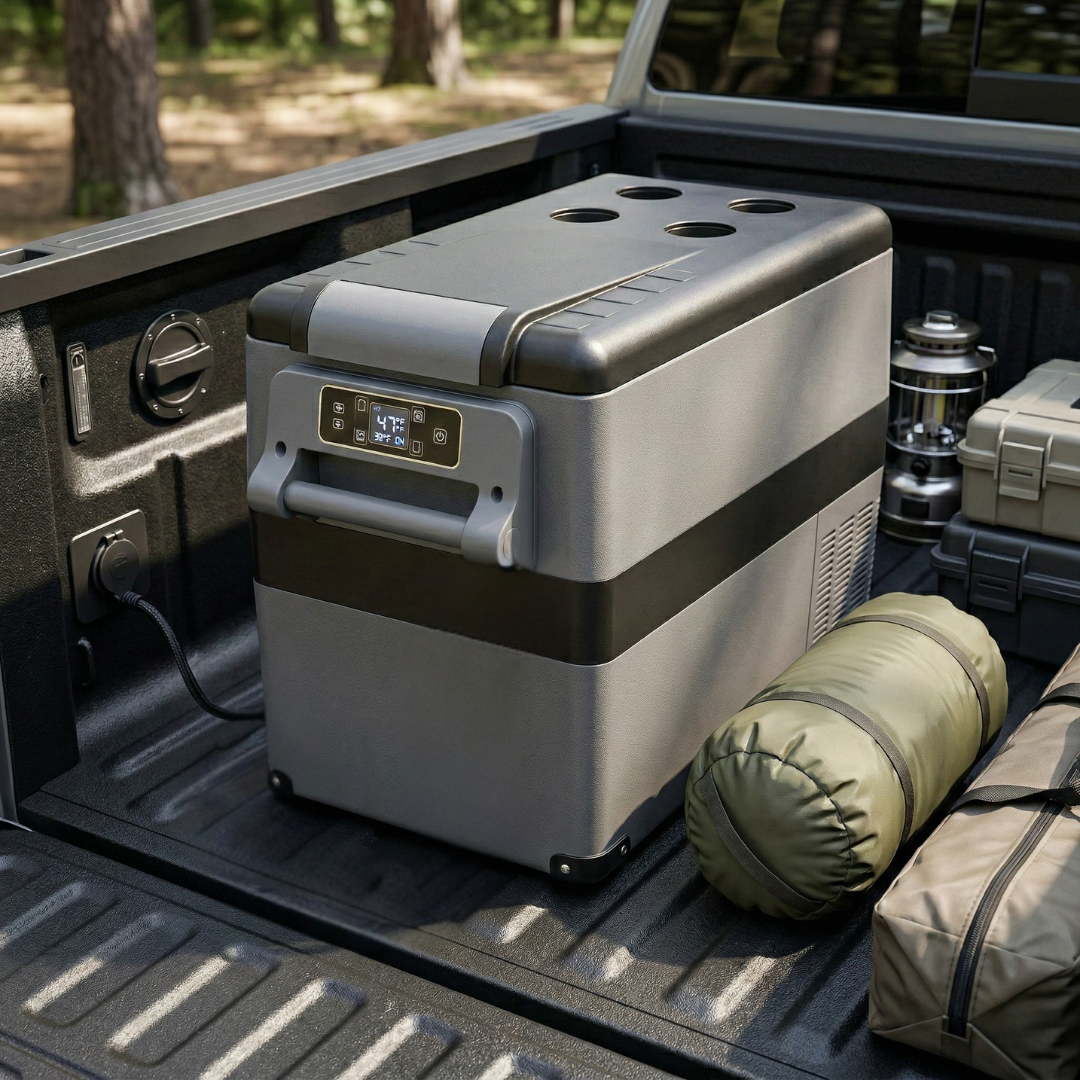

Placement and Handling Configuration

The refrigerator is freestanding and requires no permanent mounting within the vehicle. Integrated side handles allow repositioning between trunk, cargo area, truck bed, or marine deck storage. The removable basket simplifies loading and cleaning access, and the interior LED light supports visibility in low-light cabin conditions. Exterior surfaces can be wiped clean with a dry or slightly damp cloth.

Product Benefits:

• Wide Temperature Range: Adjustable cooling supports refrigeration or freezing during transport and travel.
• Dual Power Compatibility: Operates from vehicle DC outlets or standard household AC power.
• Battery Control System: Three-level low-voltage cutoff supports different vehicle electrical systems.
• Portable Chest Layout: Integrated handles and compact body support transport between locations.
• Organized Interior Storage: Removable basket and LED-lit compartment support accessible item organization.

Specifications:

• Material: Molded rigid plastic housing with metal internal components

• Dimensions:
  • 19QT (18L): 22.4 × 12.6 × 11.4 in
  • 23QT (22L): 23.5 × 12.6 × 13.0 in
  • 26QT (25L): 23.8 × 12.8 × 14.0 in
  • 31QT (30L): 24.6 × 13.0 × 15.8 in
  • 47QT (45L): 27.4 × 14.2 × 18.3 in
• Power Source or Voltage: 12V/24V DC vehicle outlet; 100–240V AC wall outlet

• Operating Range: -4°F to 68°F; approx. 45W average consumption

• Connection Type: DC vehicle plug and Type A 2-pin AC plug

• Placement or Use Area: Vehicle cabin, trunk, cargo area, RV interior, boat cabin, or home use
