Rail-Slot Lockup, Not Random Hooks

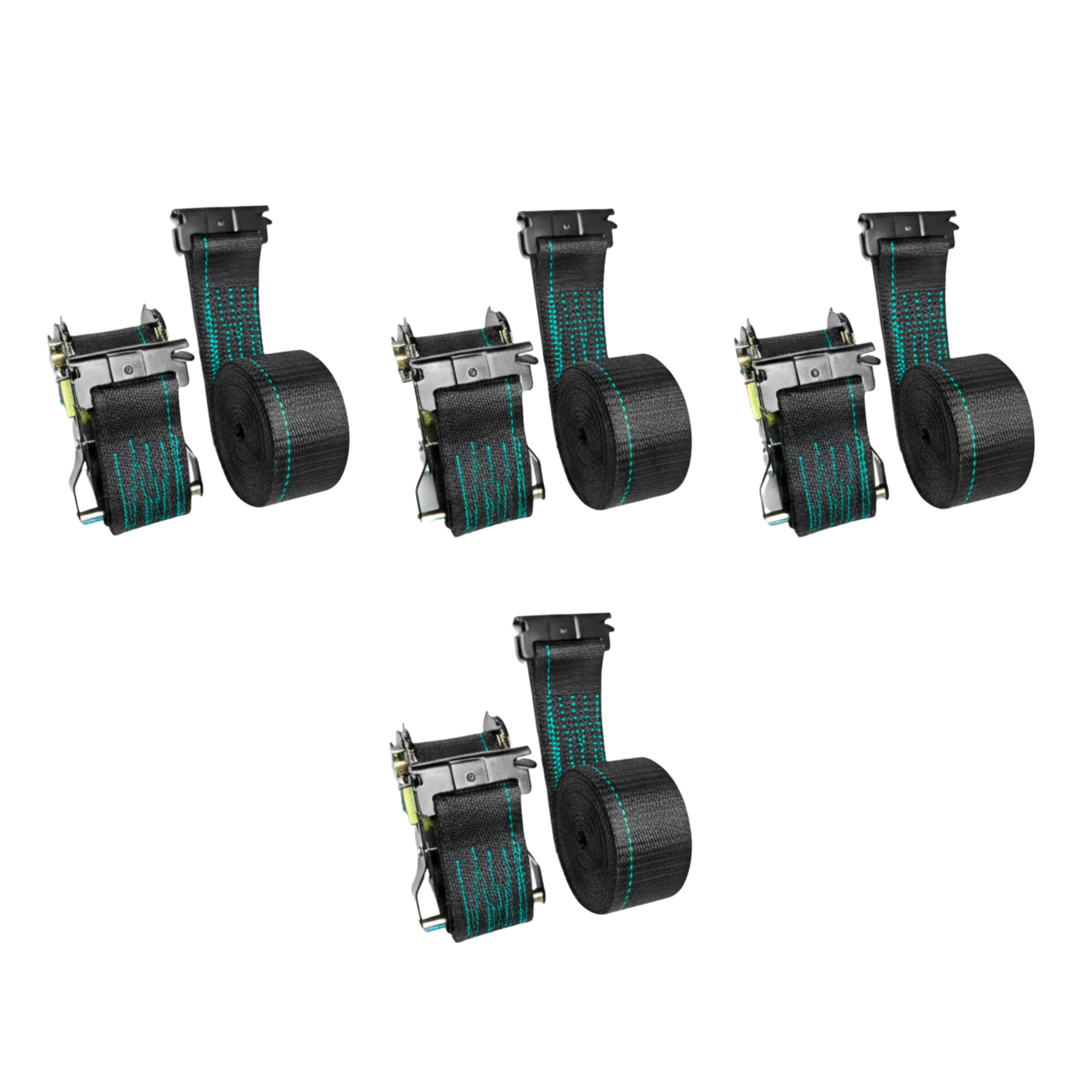

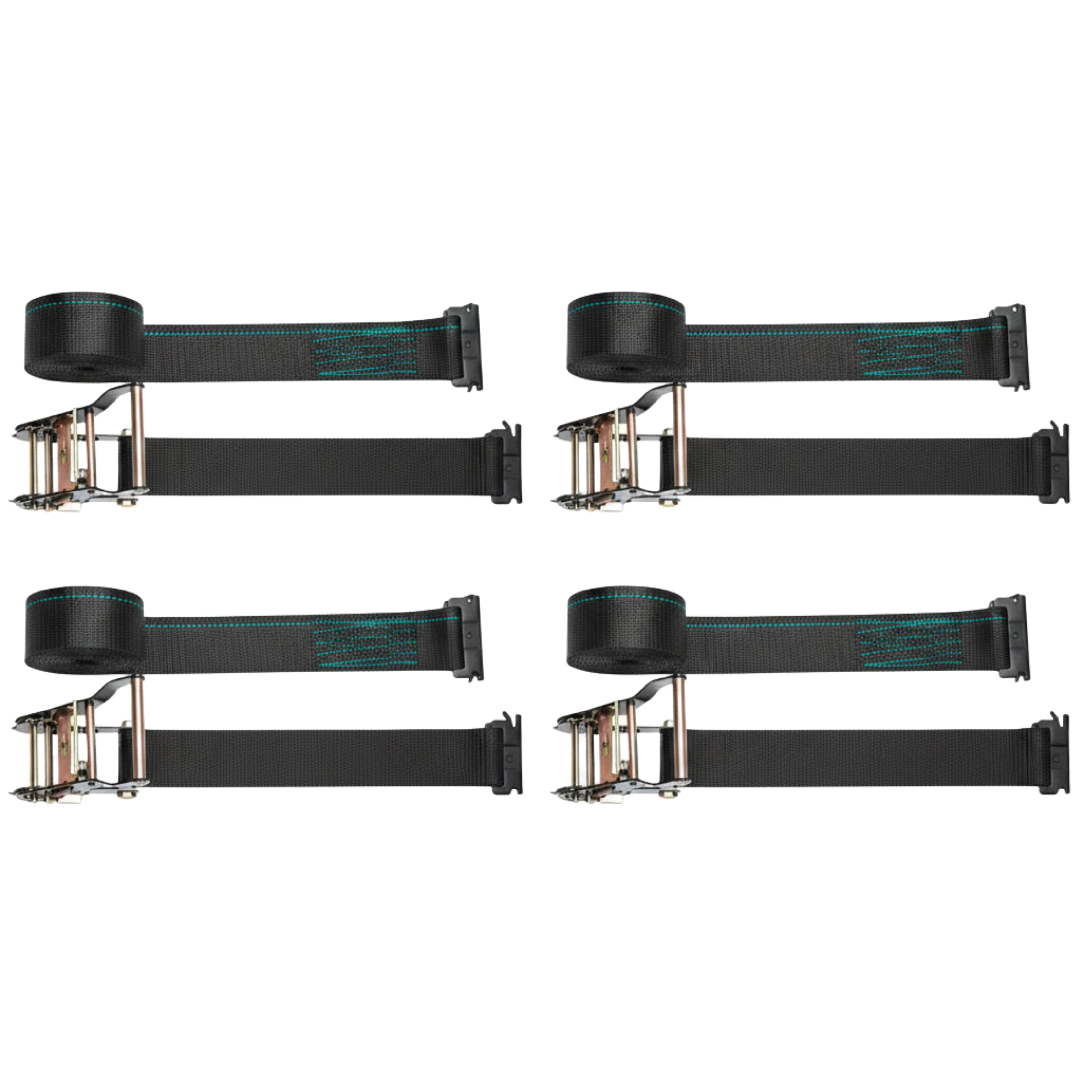

This 4-pack uses E-track spring fittings rather than open hook ends, so the fitting seats into standard E-rail slots used in many cargo vans and enclosed trailers. The 2 in polyester webbing matches common E-track tie-down hardware sizing. Each strap is rated at a 1,500 lbs working load limit with a 4,500 lb breaking strength for load planning.

Tensioning Path Through the Ratchet

Webbing routes through an alloy steel ratchet spindle and is tightened by cycling the handle to remove slack in controlled steps. A spring-loaded release disengages the gear when the handle is opened during unloading. Operation is manual with no electrical input.

Load-In, Click-In, Roll-Up

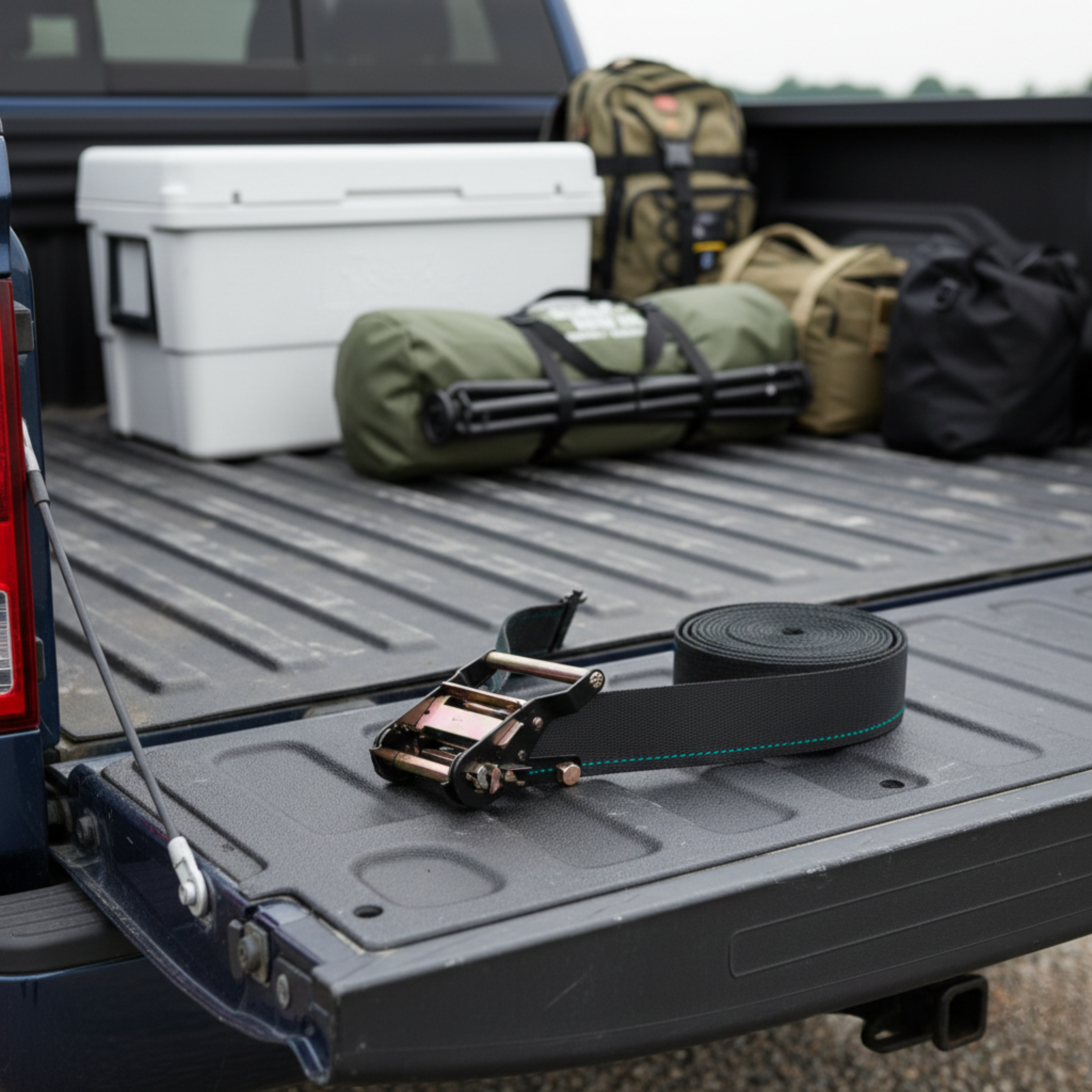

Insert the E-track spring fitting into the selected E-rail slot, route the webbing over the cargo, then feed the free end into the ratchet take-up slot. To remove tension, open the release and pull the webbing back through the spindle. Roll the webbing for storage; the set includes a storage bag for keeping the four straps together in a cargo area or tool compartment.

Product Benefits:

• E-Track Slot Fittings: Spring fittings seat into standard E-track rail slots used in cargo vans and enclosed trailers.

• 2-Inch Webbing Width: 2 in polyester webbing matches common E-track tie-down hardware sizing.

• Manual Ratchet Tightening: Ratchet handle cycles to tighten the webbing in step-by-step increments.

• Release for Webbing Payout: Spring-loaded release disengages the gear when opened for unloading and strap removal.

Specification:

• Material: Polyester webbing; alloy steel ratchet; E-track spring fitting

• Dimensions: 192 in × 2 in

• Set Weight: 8.51 lb

• Operating Range or Capacity: Working load limit 1,500 lb ; breaking strength 4,500 lb

• Connection Type: E-track spring fitting; ratchet take-up slot

• Placement or Use Area: Cargo van E-track rails, trailer E-track rails, cargo areas with E-track installed
